NF P92-505 EU95/28EC Melting Material Dripping Testing Machine

NF P92-505 EU95/28EC Melting Material Dripping Testing Machine

NF P92-505 Melting Material Dripping Testing Machine Introduction:

This thermal radiation molten drip tester meets the technical specifications and requirements specified in international standards NF P92-505, EU 95/28/EC, and ECE R118 Annex 7. According to NF P 92-505, this test is an additional test for Class M building materials. It is suitable for testing the molten dripping and combustion performance of hot-melt materials under the action of a primary heat source. It can test flexible and thin materials, such as cellulose in thermal insulation wadding.

NF P92-505 Melting Material Dripping Testing Machine standard:

NF P92-505
EU 95/28/EC
ECE R118 Annex 7

NF P92-505 Melting Material Dripping Testing Machine Specification:

NF P92-505 Melting Material Dripping Testing Machine Feature:

1. All tooling is made of stainless steel, which is aesthetically pleasing and corrosion-resistant.

2. The radiation support is rotatable, with a rotation angle greater than 90 degrees, facilitating sample installation.

3. The sample installation height is adjustable.

4. Electric radiator.

5. The radiant heat output is linearly adjustable; the radiant heat is automatically adjusted via power control.

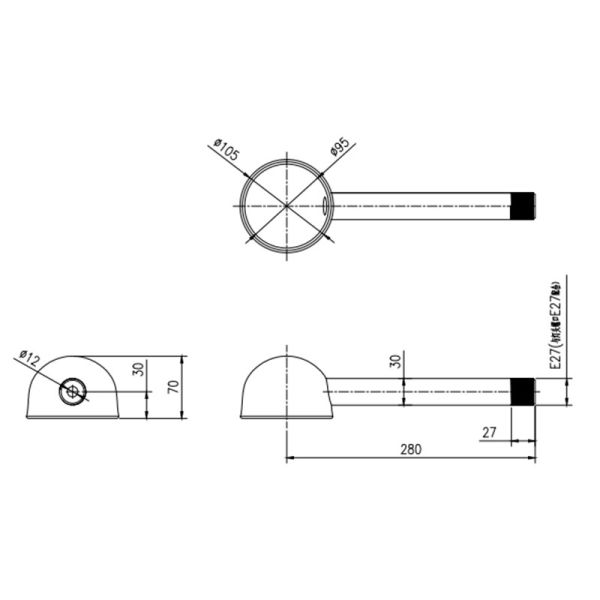

6. The radiation hood is made of quartz glass with an opening diameter of 100mm ± 5mm.

7. The thermal radiation at a distance of 30mm from the lower surface of the radiation hood is 3W/cm³.

8. The sample holder is made of a stainless steel ring with an inner diameter of 118mm.

9. The receiving tray has an inner diameter of 118mm and a depth of 12mm, and is stuffed with cotton.

10. Automatic timing reminder for sample ignition.

NF P92-505 flammability testing machine

EU95/28EC melting material tester

dripping test equipment with warranty

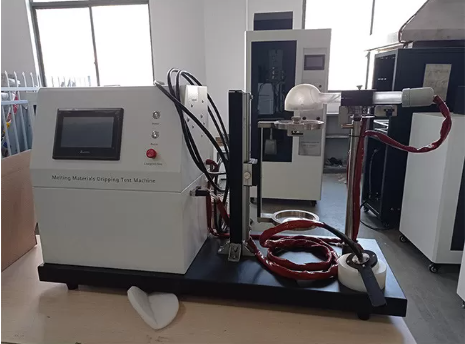

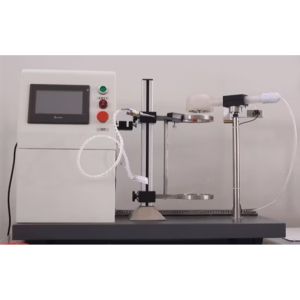

NF P92-505 EU95/28EC Melting Material Dripping Testing Machine Images
